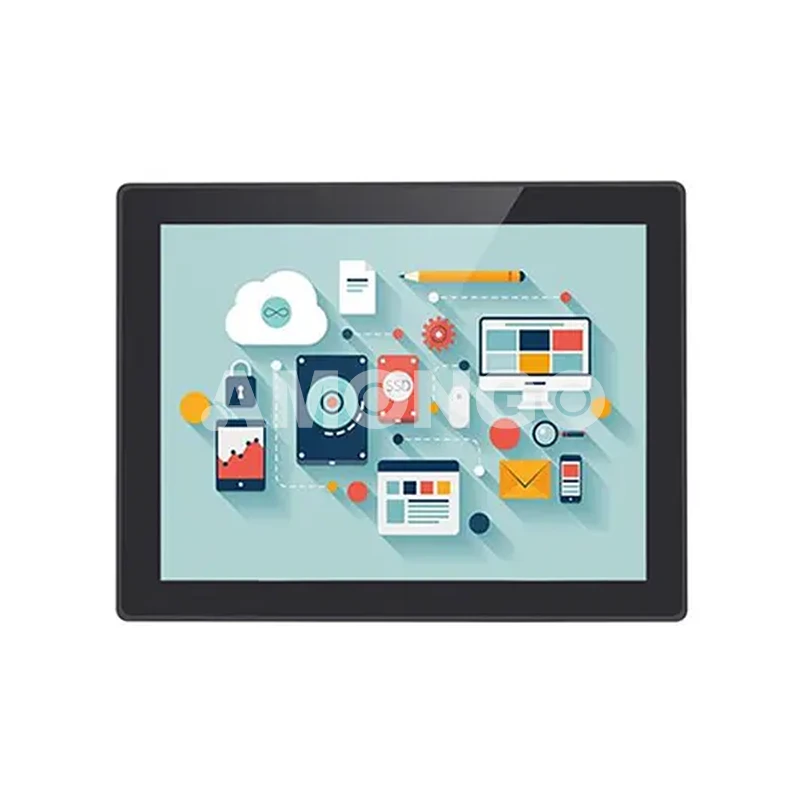

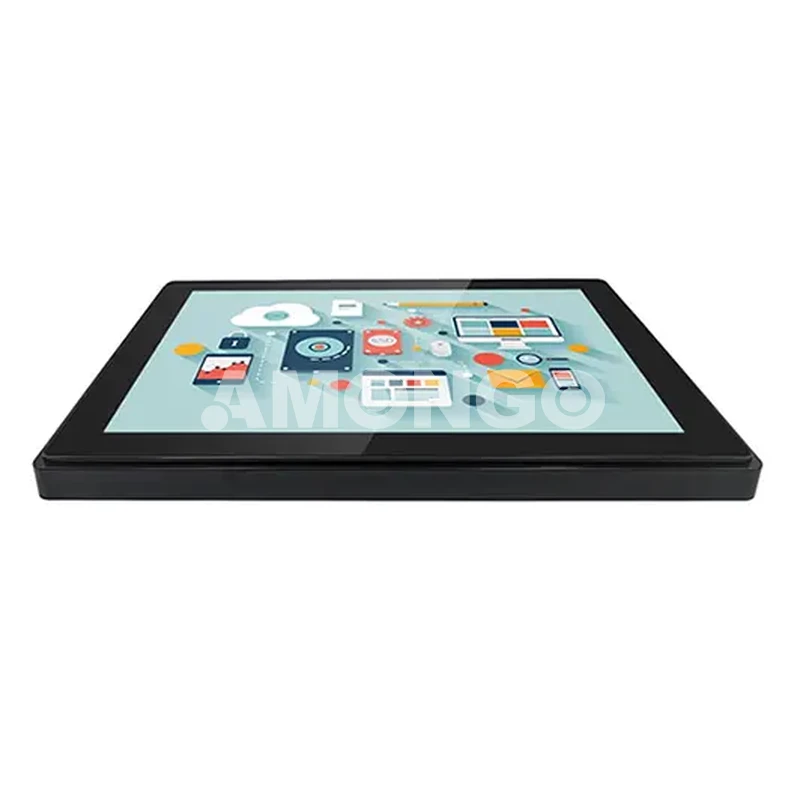

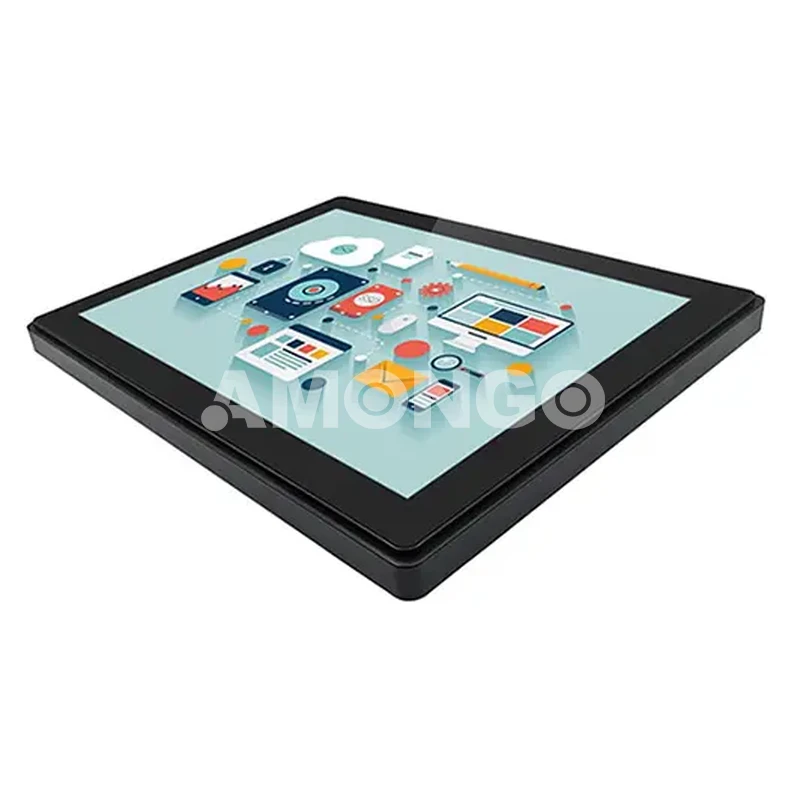

The flange bezel designed capacitive touch monitor AMG-12OPZY01T9 for industrial applications made by Amongo is attractive with below features:
Top LCD panels with a perfect image quality, industrial-grade electronics components to support 24/7/365 long time running;
Rugged and friendly mechanical design to withstand harsh environments and working conditions;

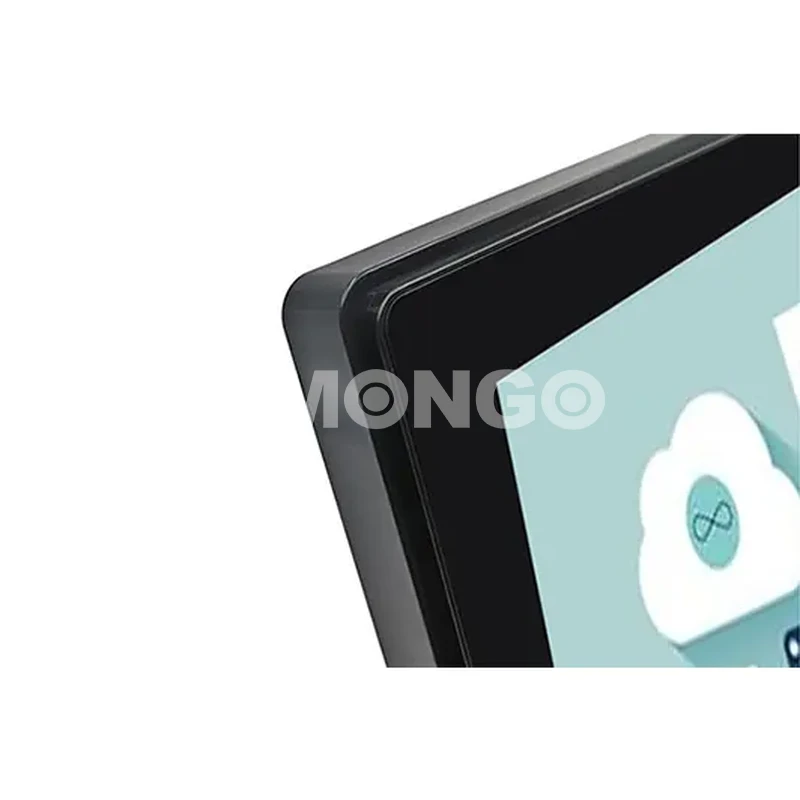

IP65 waterproof side frame integrated with capacitive touchscreen for easy installation an d maintenance, dust proof, vandal proof;
Support HDMI and DP(Display Port) input for high definition(HD)
Model Name | AMG-12OPZY01T9 |
Screen Size | 12.1” |
Active Display Area(mm) | 246.0(H)x184.5(V) |
Pixel Pitch(mm) | 0.3075(H)x0.3075(V) |
Display Resolution (pixel) | 800x600 |
Contrast Ratio | 700:1 |
Display Mode | Normally white |
Touch screen(optional) | PCAP Touch(10 points) |
Brightness (cd/㎡) | 350nits |
Backlight | LED |
Viewing Angles (CR=10) | 160(H)x140(V) |
Response Time(Typ.Tr+Tf) | 35ms |
Dimension(VxHxT) | 297.7x236.2x40 |
Signal Connector | VGA/HDMI/DP/Audio |
Touch Interface | USB |
Input Voltage | DC12V |
Operating Systems Support | Windows 7/8/10 / Linux(optional) |
Operating Temperature | -20～70℃(non-condensation) |
Storage Temperature | -30～80℃(non-condensation) |
Relative Humidity | 5(%RH)～90(%RH) |
