Signal mode VGA,DVI,Audio
Resistive touch screen (5-wire, 4-wire optional)
Support embedded installation, VESA installation (bracket optional)
LED backlight
Application:
AFC/ Industrial equipment / Kiosk
| Technical Specification | |
| LCD | |

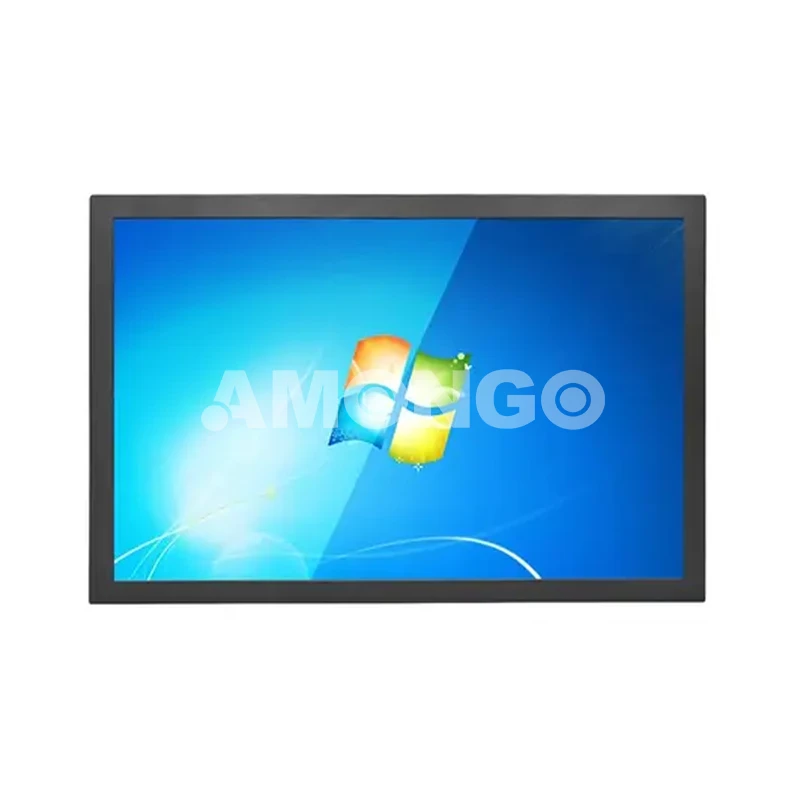

| Model Name | AMG-22IPTP01T1 |
| Screen Size | 22" |
| Active Display Area(mm) | 473.76(H)x296.1(V) |
| Pixel Pitch(mm) | 0.282(H)x0.282(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1680x1050 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 300nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 178(H);178(V) |
| Response Time（Typ.Tr+Tf） | 25ms |
| Optional | |
| Touch Screen | PCAP Touch(10 points) |
| Light Sensor | Support |
| Tempered glass | Support |
| I/O Interface | |
| Signal Connector | VGA/DVI-D/Audio/RS232 |
| Power Input | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 515*338*55.5 |
| Environmental | |
| Operating Temperature | 0~50℃（non-condensation） |
| Storage Temperature | -20~60°C（non-condesation） |
| Relative Humidity | 5~90(% RH) |
