Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 long time running;
Durable mechanical design to meet tough environmental conditions and requirements;

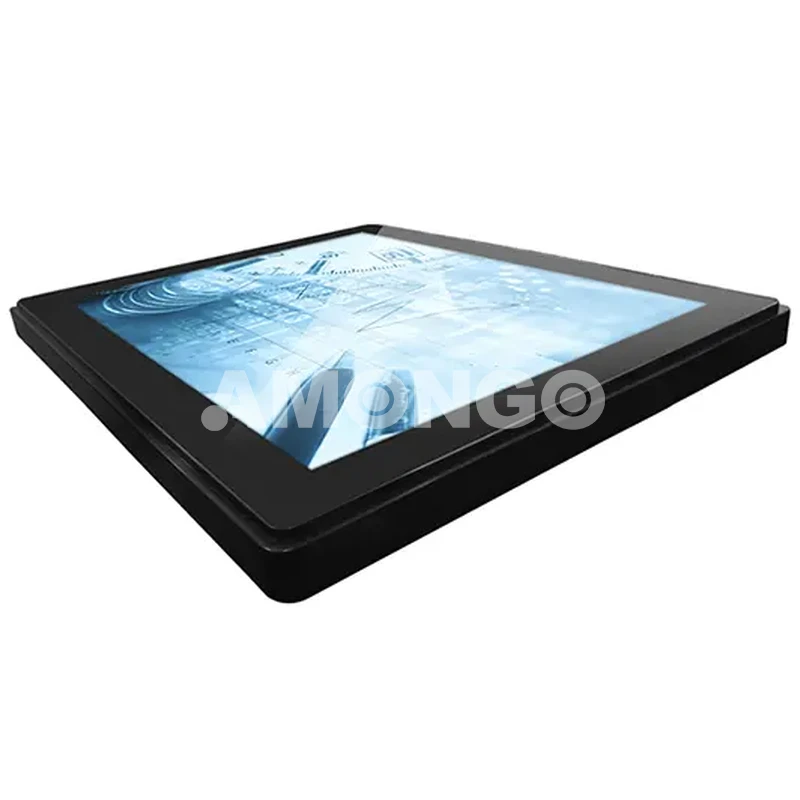

Molded side frame integrated with PCAP touchscreen for easy installation and maintenance
Front IP65 waterproof, dust proof, vandal proof;
Customization service available

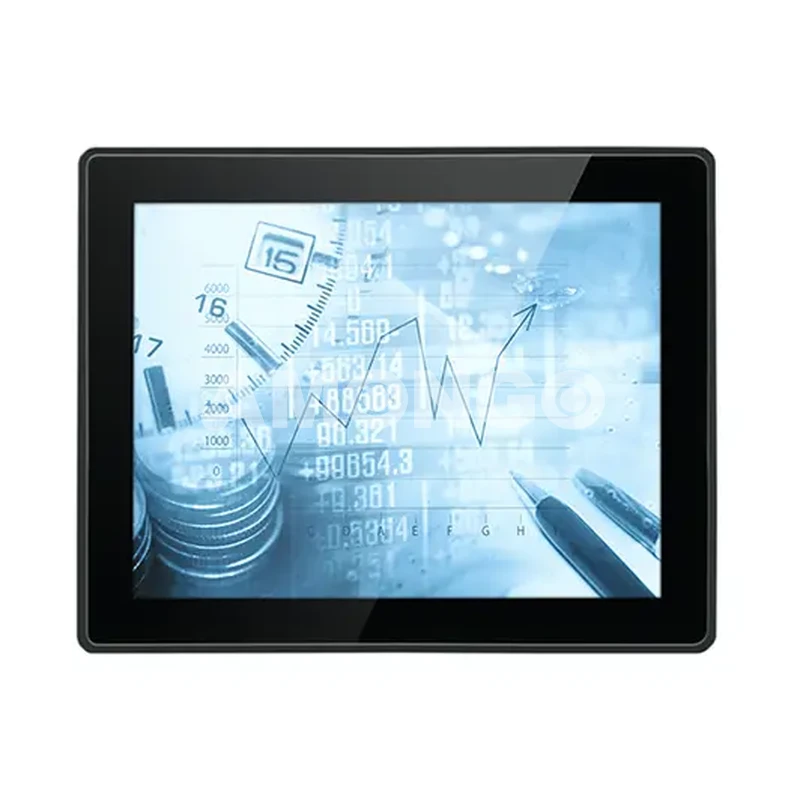

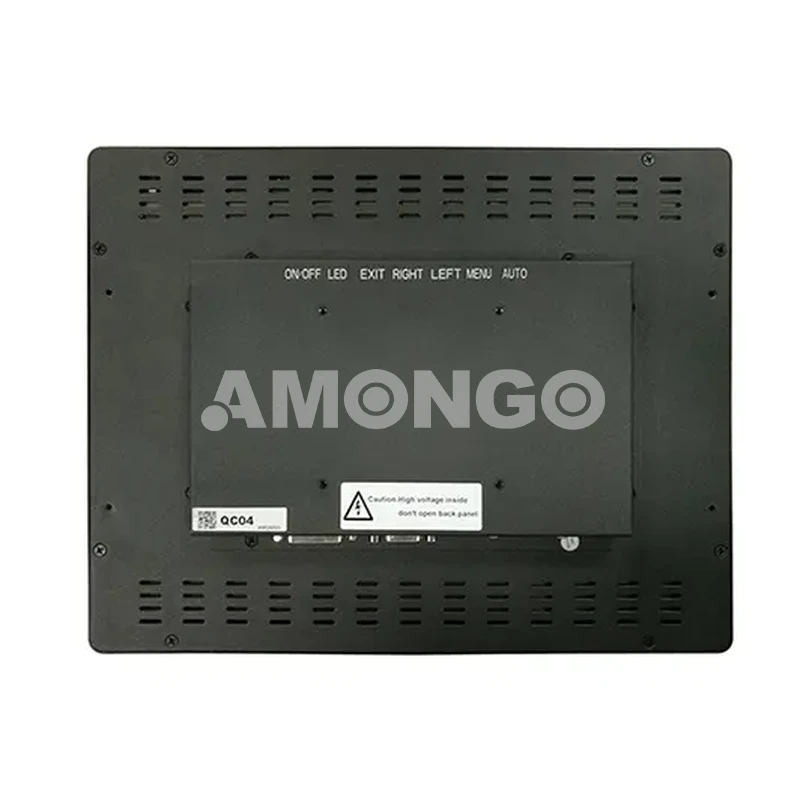

Model Name | AMG-12OPYH01T1 |
Screen Size | 12.1" |
Active Display Area (mm) | 245.76(H)x184.32(V) |
Pixel Pitch (mm) | 0.24(H)x0.24(V) |
Display Mode | Normally white |
Display Resolution (pixel) | 800x600(1024x768 optional) |
Contrast Ratio | 700:1 |
Display Color | 16.7M |
Brightness (CD/㎡) | 350nits |
Backlight | LED |
Viewing Angles (CR =10) | 160(H);140(V) |
Response Time(Typ.Tr+Tf) | 8ms |

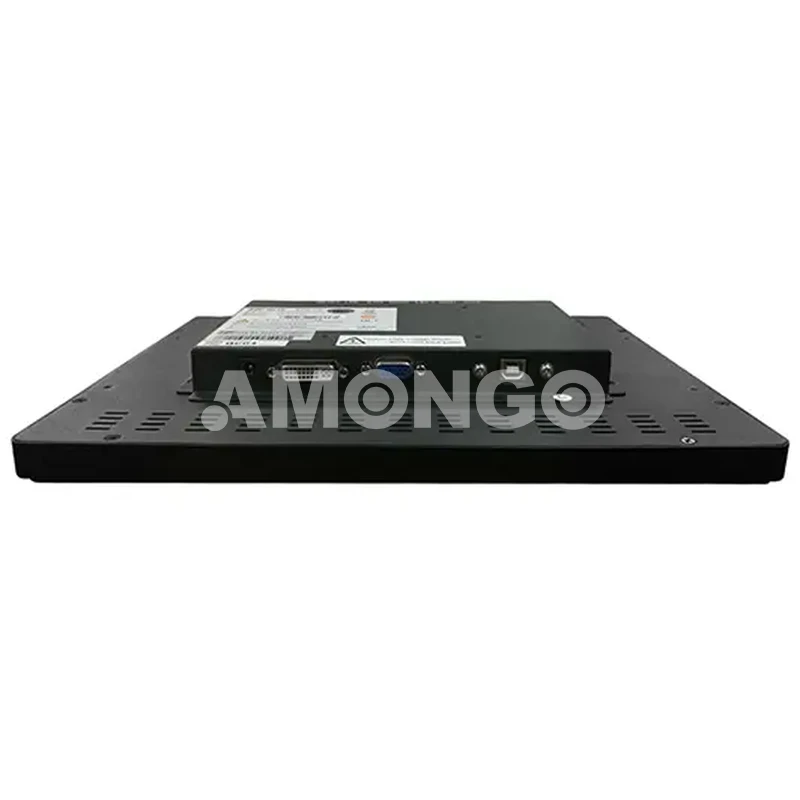

Signal Connector | VGA/DVI-D/USB |
Power Consumption | DC 12V |
Dimension(VxHxT) | 290.4x228.9x40 |
Operating Temperature | -20~70℃ |
Storage Temperature | -30~80℃ |
Relative Humidity | 5(%RH)~90(%RH) |
Touch Screen | PCAP Touch(10 points) |
