Branded LCD panels with perfect image quality and wide viewing angles;
Built with industrial-grade components for a reliable 24/7 continuously operation;
LED backlight, brightness up to 1200 nits;
With light sensor for auto-dimming, to save energy and extend backlight life span;
10-points PCAP touchscreen, full flat surface;
Customization solution available

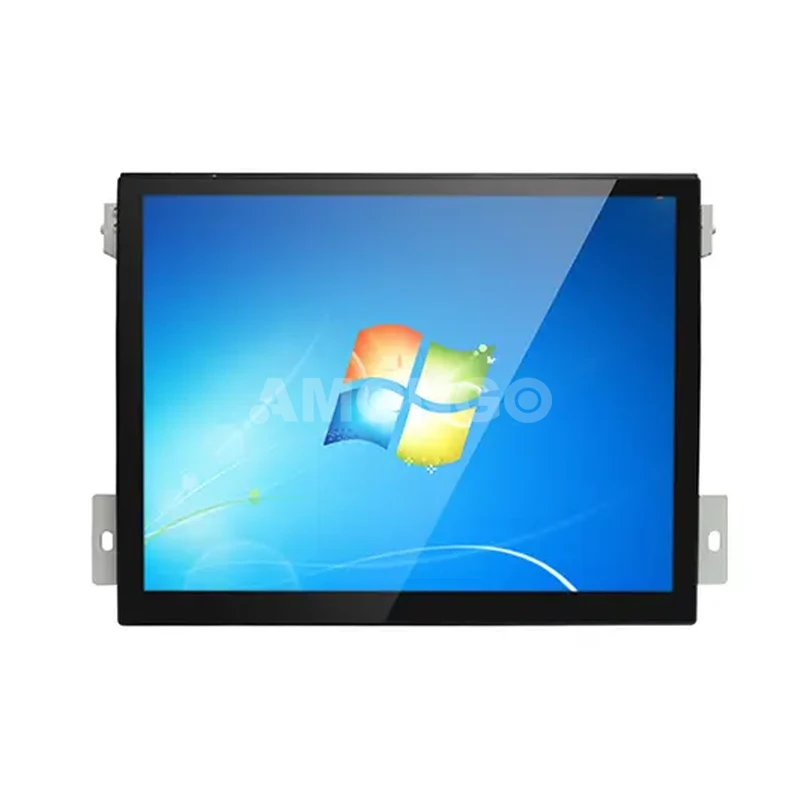

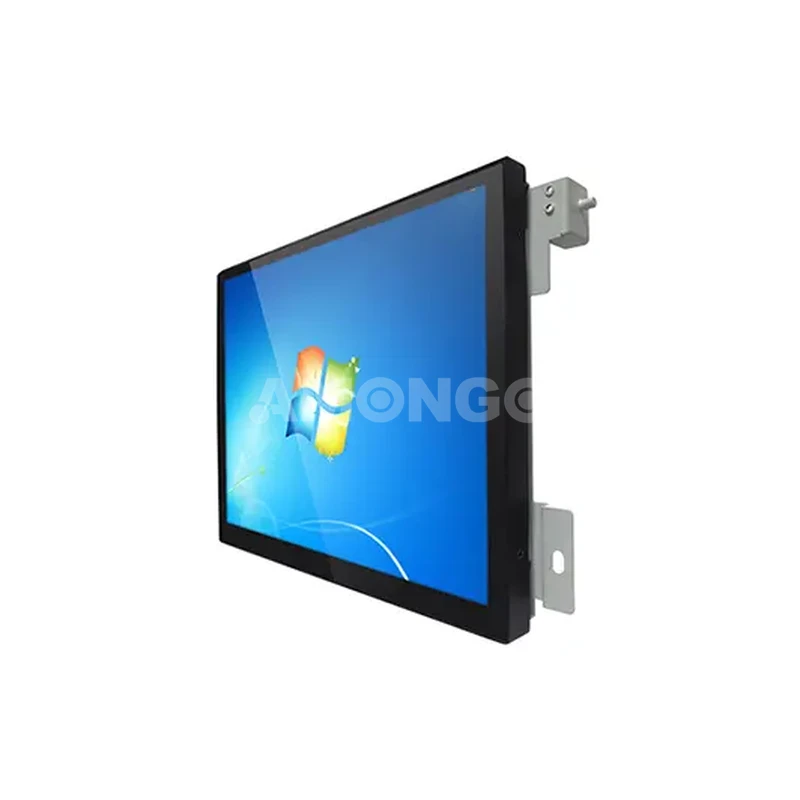

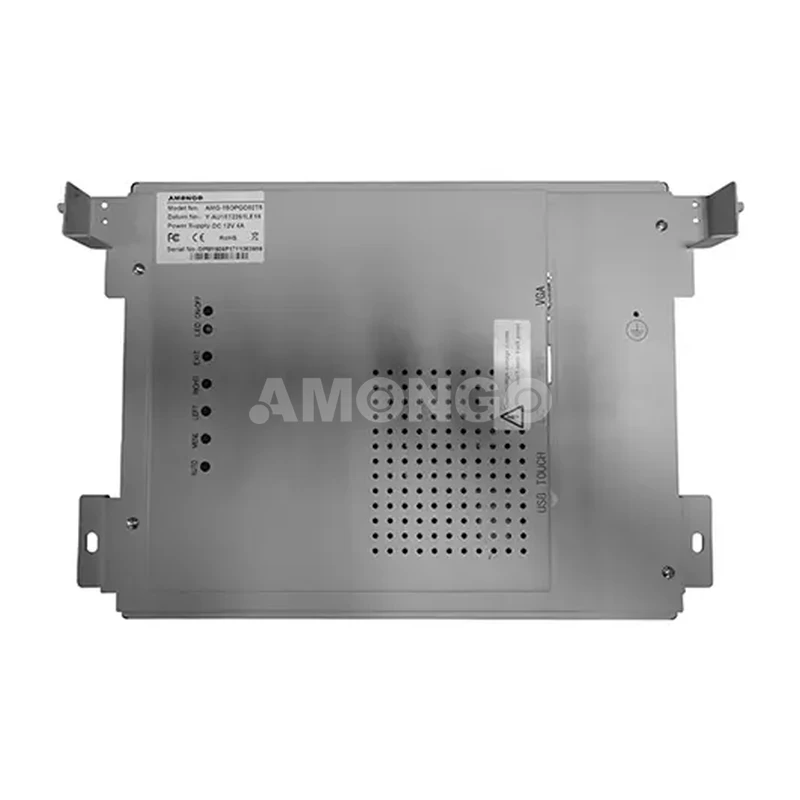

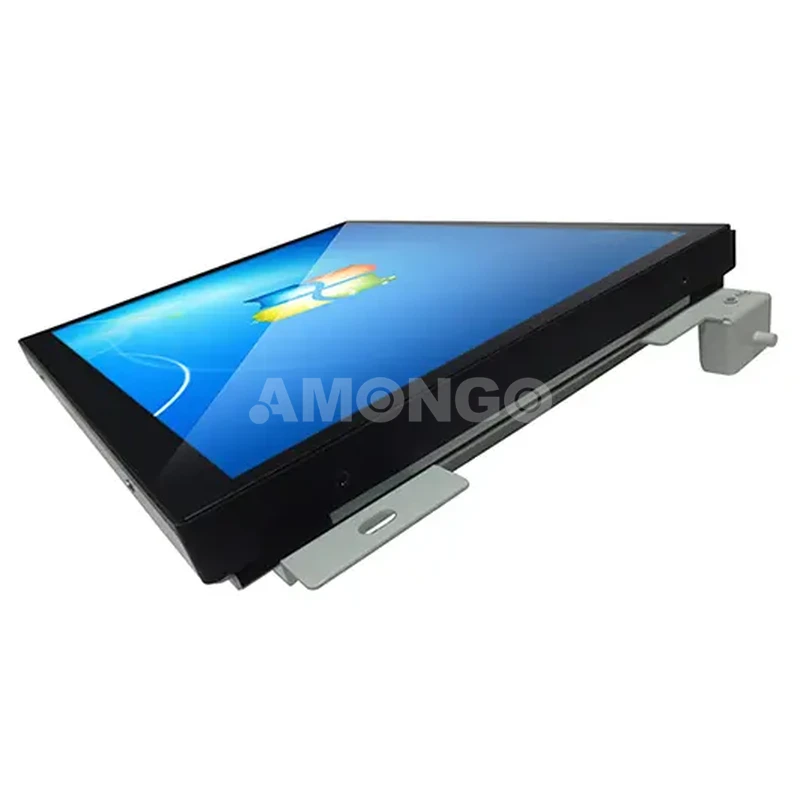

Model Name | AMG-15OPGD02T5 |
Screen Size | 15" |
Active Display Area (mm) | 304.128 (H) x 228.096 (V) |
Pixel Pitch (mm) | 0.297 (H) x 0.297 (V) |
Display Mode | Normally white |
Display Resolution (pixel) | 1024x768 |
Contrast Ratio | 700:1 |
Display Color | 16.2M/262K |
Brightness (CD/㎡) | 1200nits(Light Sensor) |
Backlight | LED |
Viewing Angles (CR =10) | 160 (H); 140 (V) |
Response Time(Typ.Tr+Tf) | 8ms |
Signal Connector | VGA/DVI/USB |
Power Consumption | DC 12V |
Dimension(VxHxT) | 391.2x265x53.6 |
Operating Temperature | -30～85℃ |
Storage Temperature | -30～85℃ |
Relative Humidity | 5(%RH)～90(%RH) |
