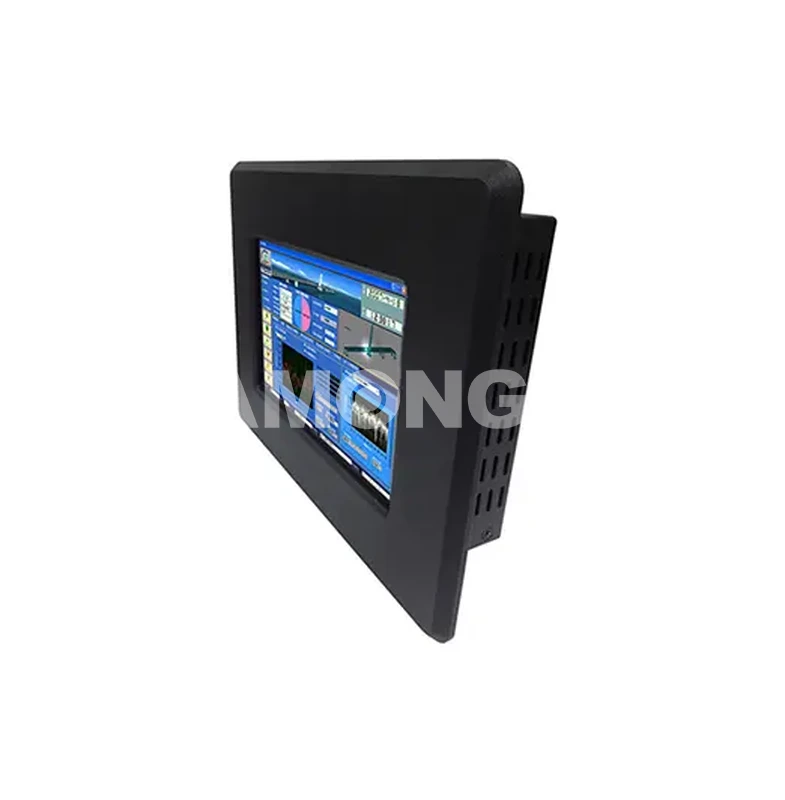

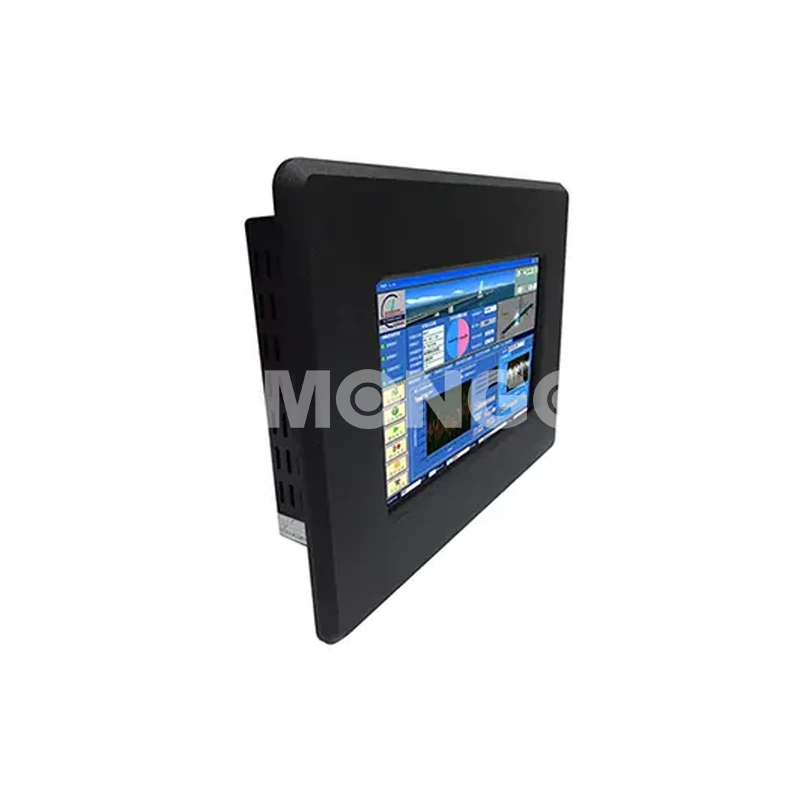

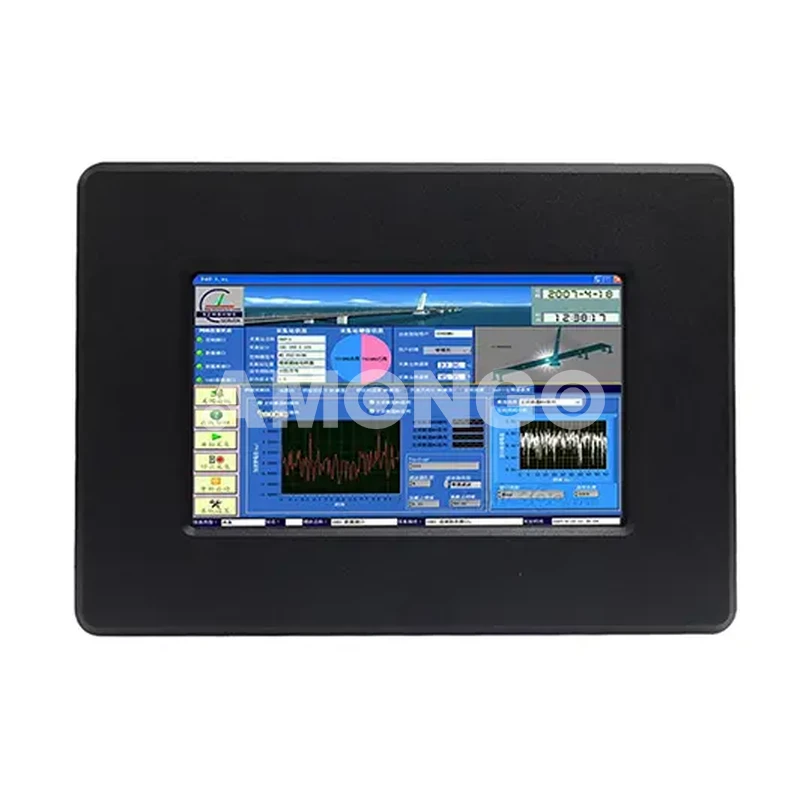

7 Inch VESA/Wall Mount Industrial Panel PC

The industrial grade wall mount panel computer AMG-07PPC01T1 made by Amongo comes with the following advantages:

Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 long time running;
Wide range of touchscreen technologies including PCAP, Resistive etc.
Durable mechanical design to meet tough environmental conditions and requirements;
IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
Tailor-made solution according to client requirements

Specifications

Model Name	AMG-07PPC01T1
CPU	Intel ® Bay Trail-M N2930 SOC Processor 1.83G
Memory	DDR3L 1333MHz 4GB
HDD	Msata 32G

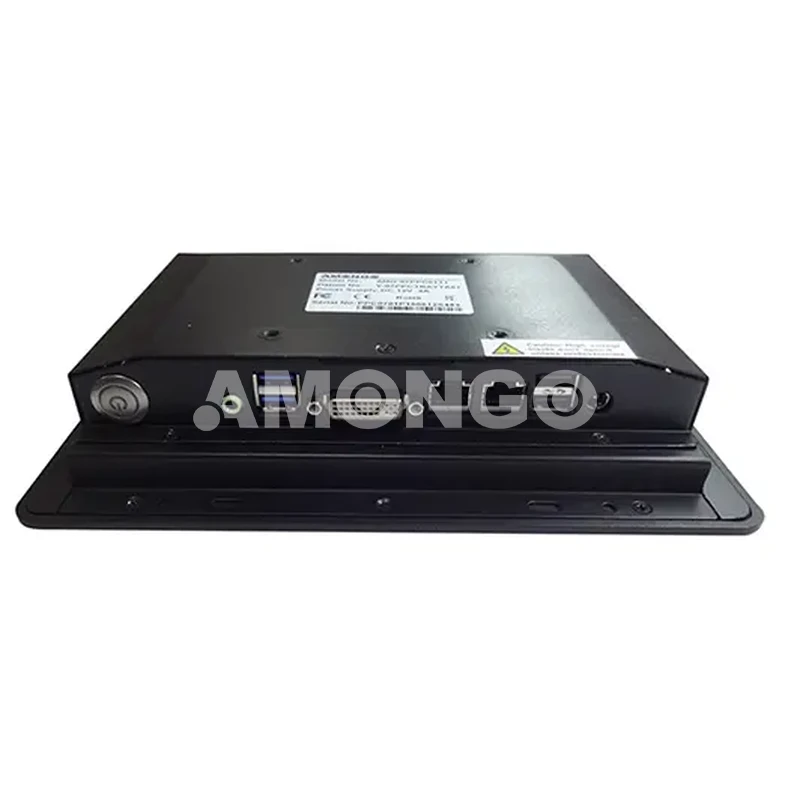

DVI port	1xDVI port
COM ports	4xCOM (optional)
USB ports	3xUSB2.0 (1xUSB 3.0)
Ethernet ports	2xRTL8111G PCI-E Gigabit LAN
Audio	1xLine-out port
Display Size	7"
Active Display Area(mm)	152.40(H)x91.44(V)
Max Resolution	800x480
Support Color	16.2M/262K colors
Luminance(CD/㎡)	350
Contrast Ratio	500:1
Pixel Pitch (mm)	0.1907(H)x0.1907(V)
Display Mode	Normally White
Viewing Angle	110(H);130(V)
Backlight	LED
Type	Resistive Touchscreen
Use connector	4pin USB2.0
Input Voltage	DC 9-24V IN
Output Rating	20W(max)
Dimension(VxHxT)	234.4x173.4x48
Operating Temperature	-20～70℃
Storage Temperature	-20～70℃
Relative Humidity	5[%RH]～90[%RH]
