PCAP Multi-touch screen
High brihtness/sunlight readable
Light senor/energy saving
IP65 waterproof,vandal-proof,dust-proof
Full-surface scratch-resistant design,MoHs 7
Application:
Semi-outdoor Kiosk/AFC/Industrial automation etc
| Technical Specification | |
| LCD | |

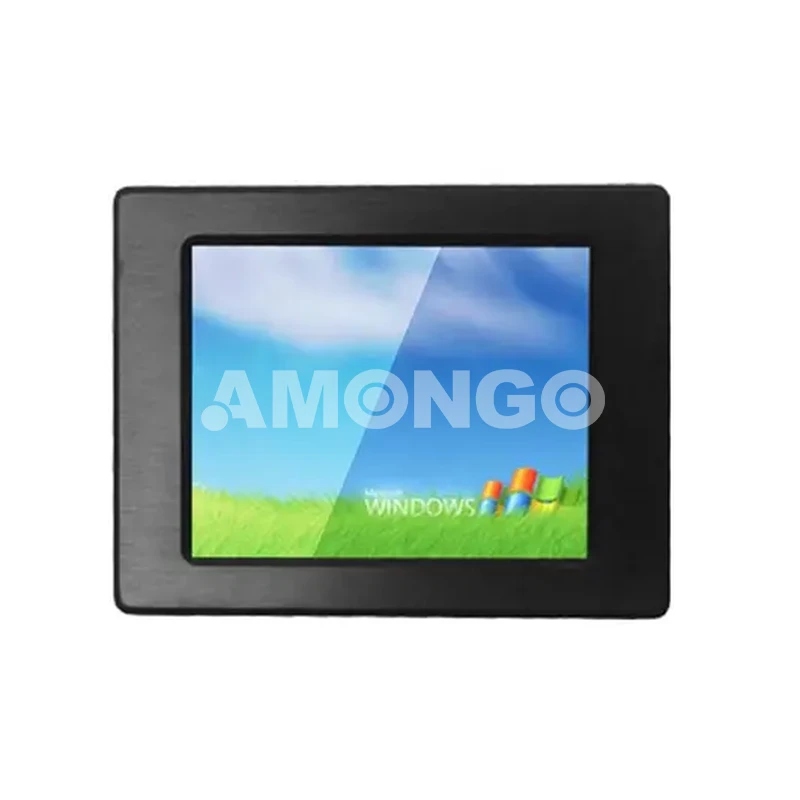

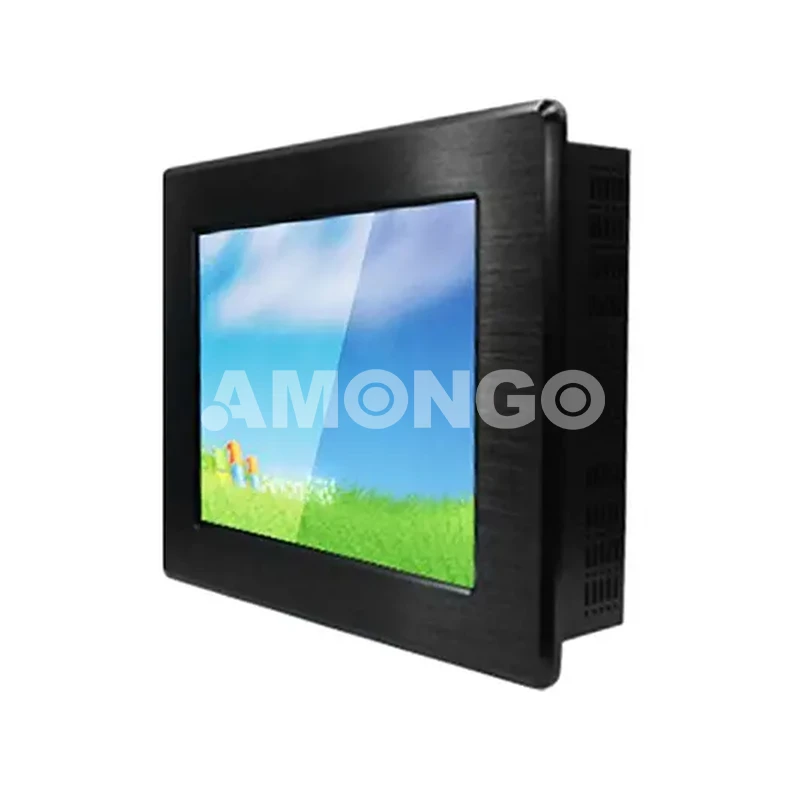

| Model Name | AMG-10IPPC03T1 |
| Screen Size | 10.4" |
| Active Display Area(mm) | 210.4(H)x157.8(V) |
| Pixel Pitch(mm) | 0.0685(H)x0.2055(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 1200:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 176(H);176(V) |
| Response Time（Typ.Tr+Tf） | 25ms |
| Optional | |
| Touch Screen | PCAP Touch（10 points） |
| Light Sensor | Optional |
| Tempered glass | Supprot |
| I/O Interface | |
| Signal Connector | VGA/DVI |
| Power Consumption | DC 2.0V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 248*217*34.5 |
| Environmental | |
| Operating Temperature | -20~70℃（non-condensation） |
| Storage Temperature | -20~70℃（non-condesation） |
| Relative Humidity | 5~90(% RH) |
