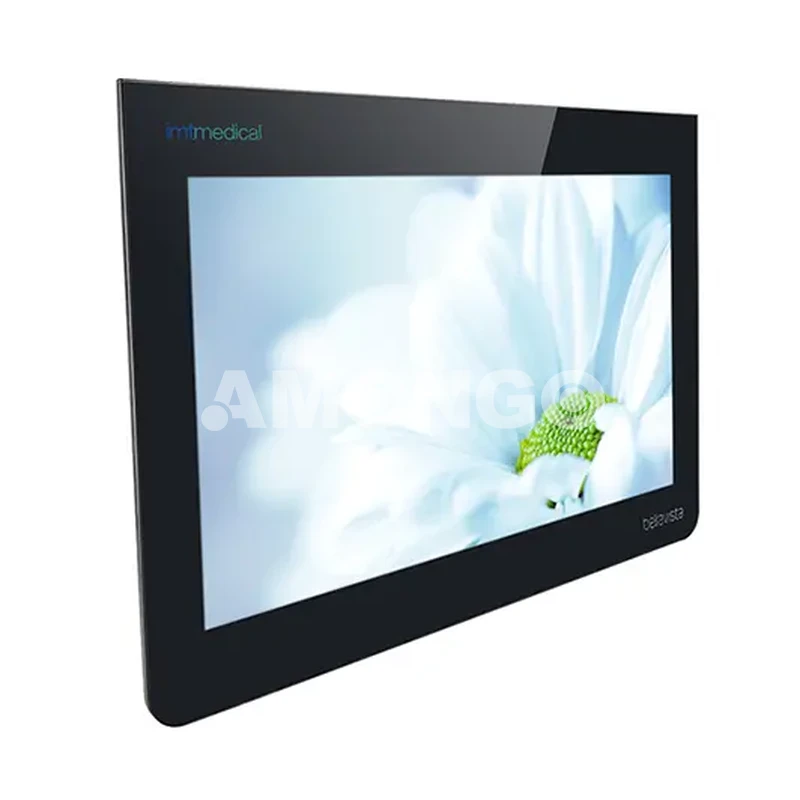

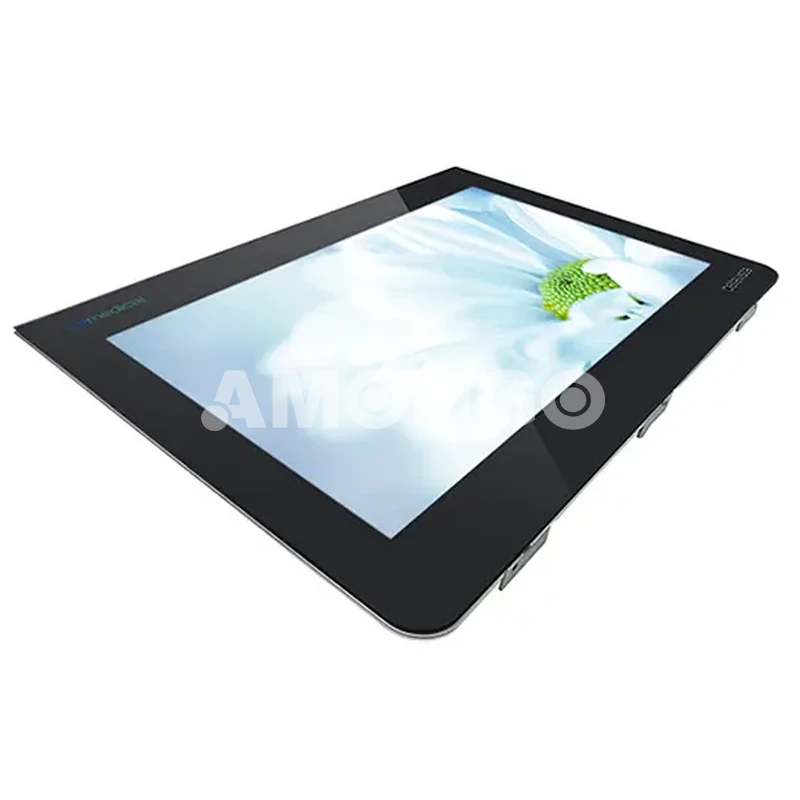

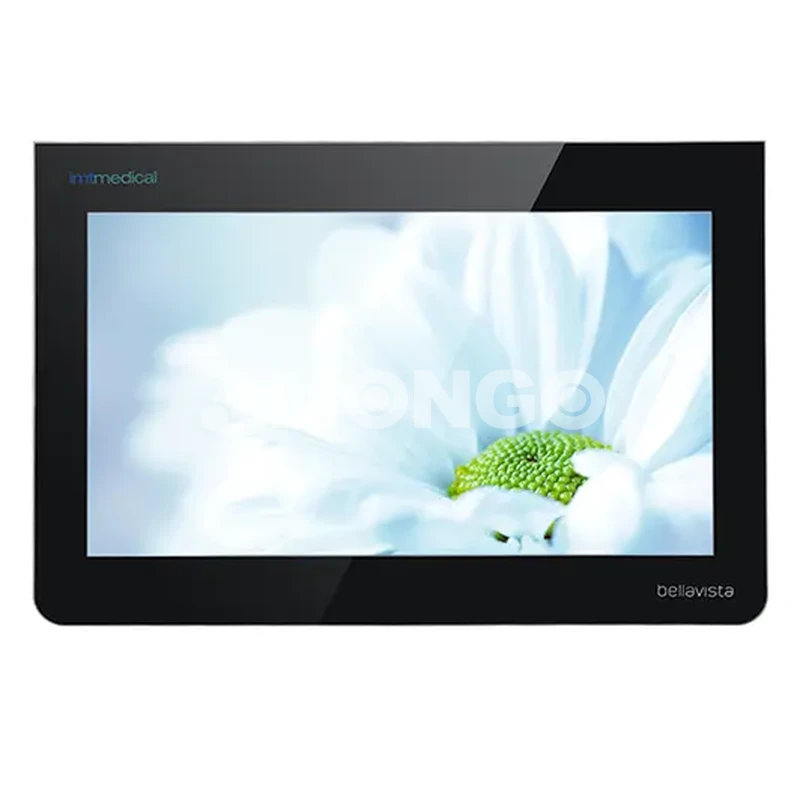

The zero-bezel industrial PCAP touch LCD monitor AMG-13OPUS01T1 by Amongo features as below:
Full flat surface, PCAP multi-touchscreen
IP65 waterproof, dust-proof, vandal-proof
Etched AG, glass sensor
Steel out-frame
LCM: AUO G133HAN01.0
Touch controller: mXT2952T2 I2C/USB
Model Name | AMG-13OPUS01T1 |
Screen Size | 13.3" |
Active Display Area(mm) | 293.472(H)x165.078(V) |
Pixel Pitch(mm) | 0.15285(H)x0.15285(V) |
Display Mode | AHVA |
Display Resolution(pixel) | 1920x1080 |
Contrast Ratio | 16.7M |
Display Color | 800:1 |
Brightness | 400nits |
Backlight | LED |
Viewing Angles(CR=10) | 178(H);178(V) |
Response Time(Typ.Tr+Tf) | 25ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Optional |
Tempered glass | Optinal |
Signal Connector | LVDS |
Power Input | DC 12V |
Touch Controller | USB |
Dimension(VxHxT)mm | 344.7x234x17.39 |
Operating Temperature | -20~60℃(non-condensation) |
Storage Temperature | -30~70℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
