Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for 24/7 continuous operation;
Durable mechanical design to meet tough environmental requirements;
Anti-glare tempered glass; Anti-dismantle Screw design
Temperature sensor for auto-control
Customization service available;

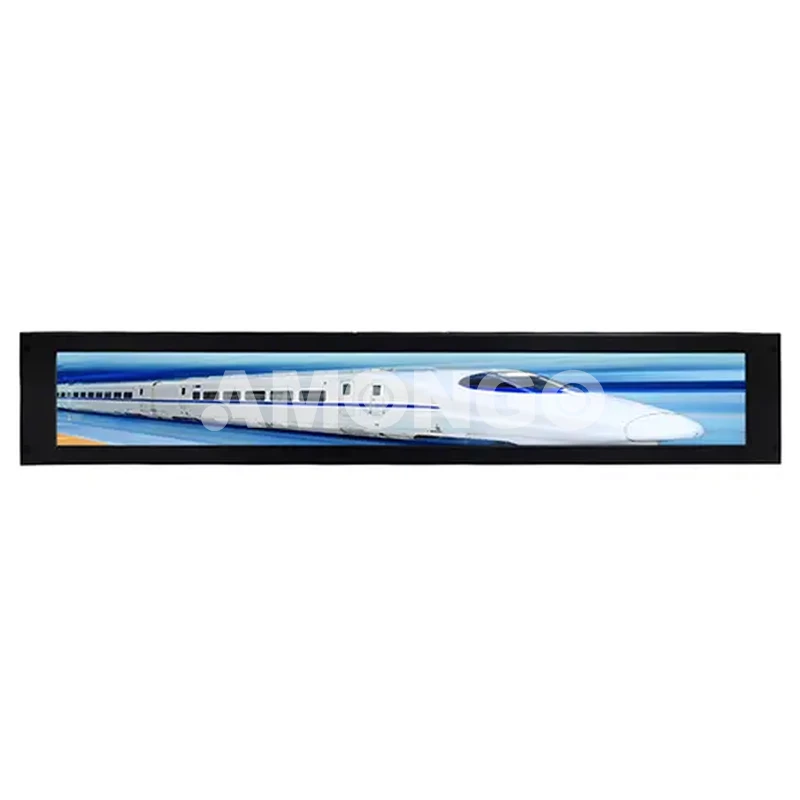

Model Name | AMG-27IPIT01G1 |
Screen Size | 27" |
Active Display Area(mm) | 211.2(H)x158.4(V) |
Pixel Pitch(mm) | 0.36375(H)x0.36375(V) |
Display Mode | Normally white |
Display Resolution(pixel) | 16.7M |
Contrast Ratio | 1920x240 |
Display Color | 3000:1 |
Brightness | 700nits |
Backlight | LED |
Viewing Angles(CR=10) | 178(H);178(V) |
Response Time(Typ.Tr+Tf) | 8ms |
Tempered glass | Anti-Glare |
Temperature sensor | Support |
Light Sensor | Optional |
Signal Connector | VGA/DVI-D/HDMI/Audio |
Power Consumption | DC 12V/24V |
Dimension(VxHxT)mm | 771.6x124.7x66 |
Operating Temperature | 0~50℃(non-condensation) |
Storage Temperature | -20~60℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
