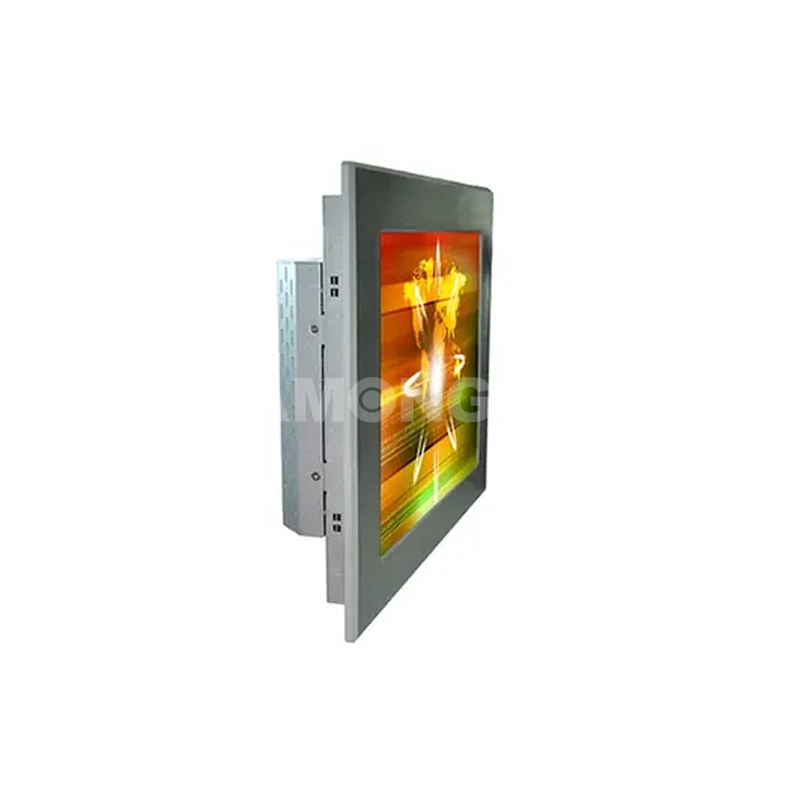

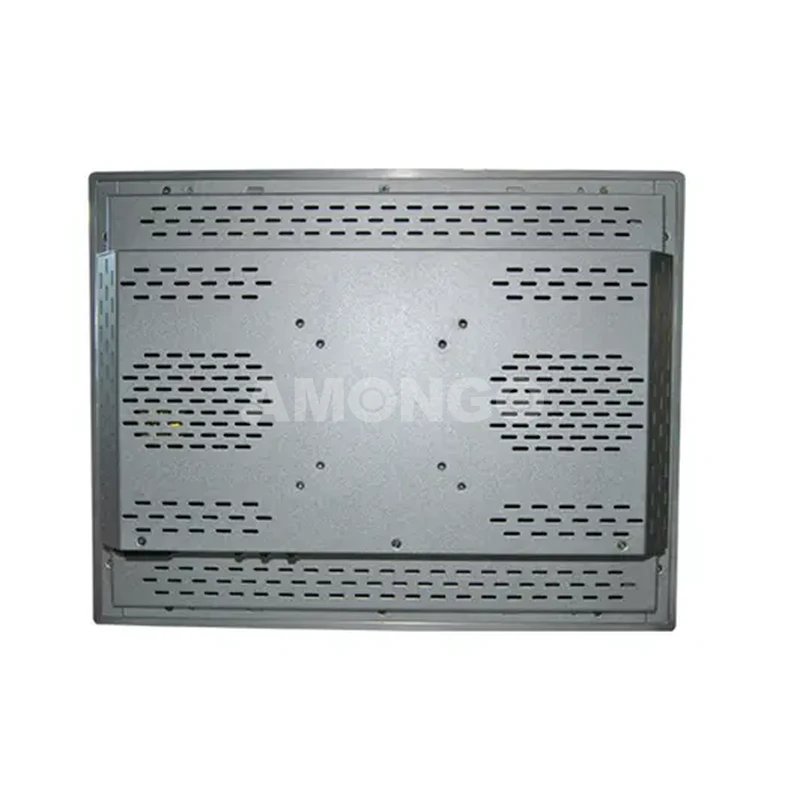

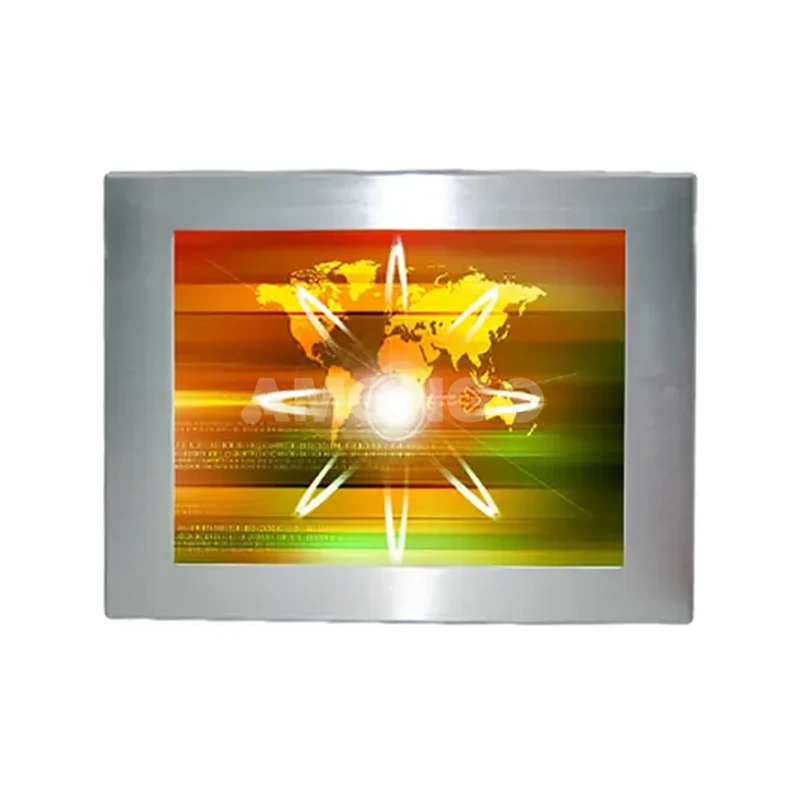

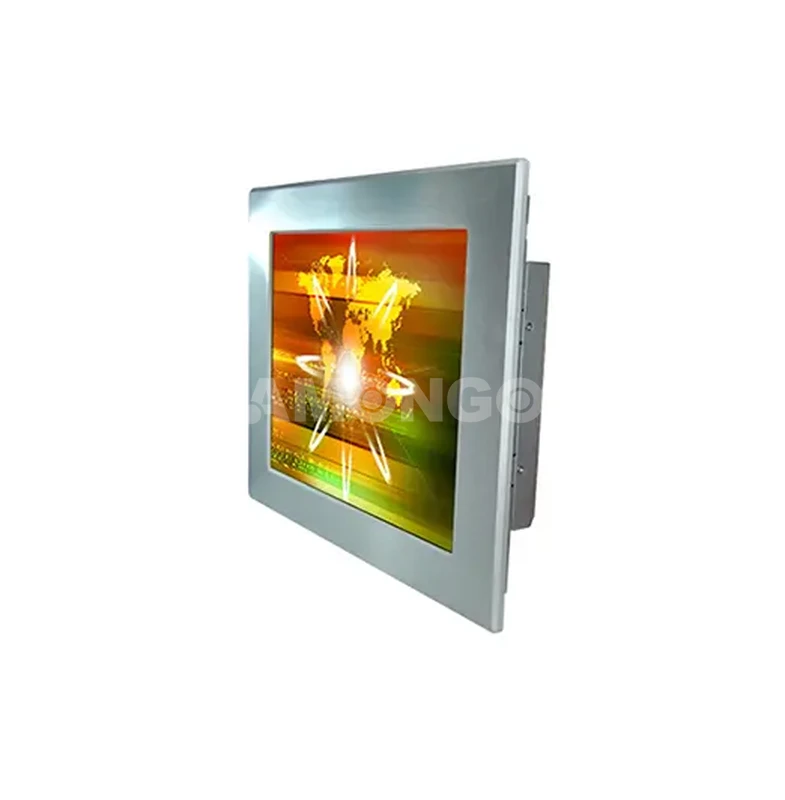

The 15 inch industrial panel computer AMG-15PPC01NC from Amongo is designed with below benefits:
Branded LCD panels with perfect image quality and wide viewing angles, low power consumption LED backlight;
Industrial-grade components like high performance processor, hard drives, power supplies for stable function in continuously operation;
Rugged enclosure design with front IP65 aluminum bezel;
Standard mounting like panel mount or embedded mount;
Meet with requested sustainability tests and reliability test to survive in the toughest application environment
Specifications
Model Name | AMG-15PPC01NC |
CPU | Intel ATOM N2600 Dual core 1.6GHz |
Memory | RAM 2GB.DDR3 SO-DIMM |
HDD | HDD 320 G 5400 RPM.2.5 SATA |
HDMI port | 1xHDMI port |
COM ports | Default x 4 COM |
USB 2.0 ports | Default x 3 USB 2.0 |
Ethernet ports | 1x10/100/1000base-T Gigabit Ethernet |
Audio | Line-out,mic-in |
Display Size(Diagonal) | 15" |
Active Display Area(mm) | 304.128(H)x228.096(V) |
Max Resolution | 1024x768 |
Support Color | 16.2M |
Luminance(CD/M ) | 250 |
Contrast Ratio | 700:1 |
Pixel Pitch(mm) | 0.297(H)x0.297(V) |
Viewing Angle | 160(H);140(V) |
Response Time(Typ.Tr+Tf) | 8ms |
Backlight | LED |
Type | NA |
Use connector | NA |
Input Voltage | AC 90-264V 4A 47～63Hz |
Output Rating | 60W(max) |
Output Voltage | DC12V@2.5A; |
Dimension(VxHxT) | 410.4x317.4x83 |
Operating Temperature | -30～85℃ |
Storage Temperature | -30～85℃ |
Relative Humidity | 5[%RH]～90[%RH] |
