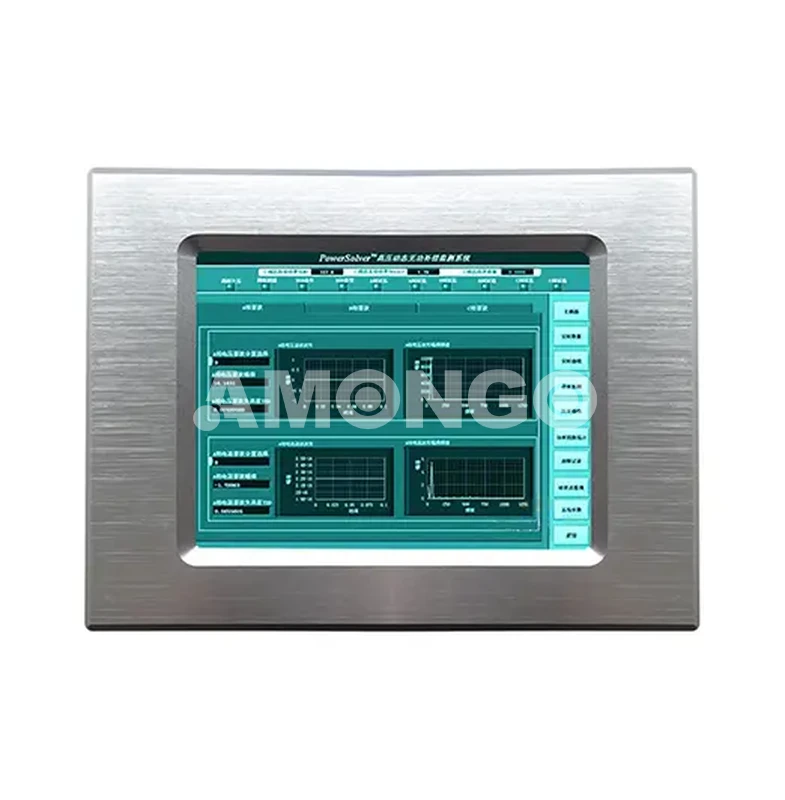

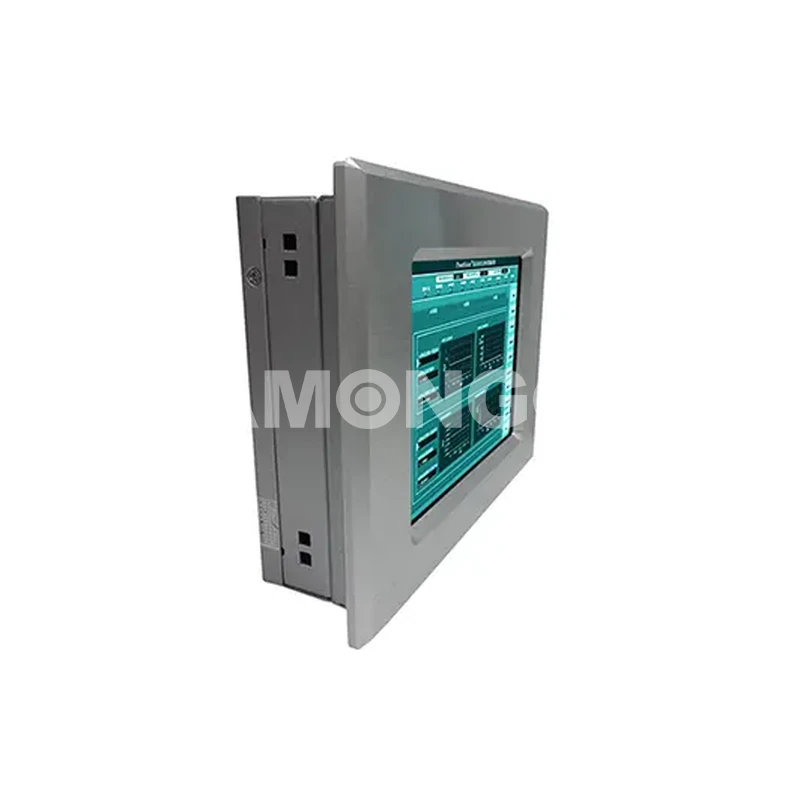

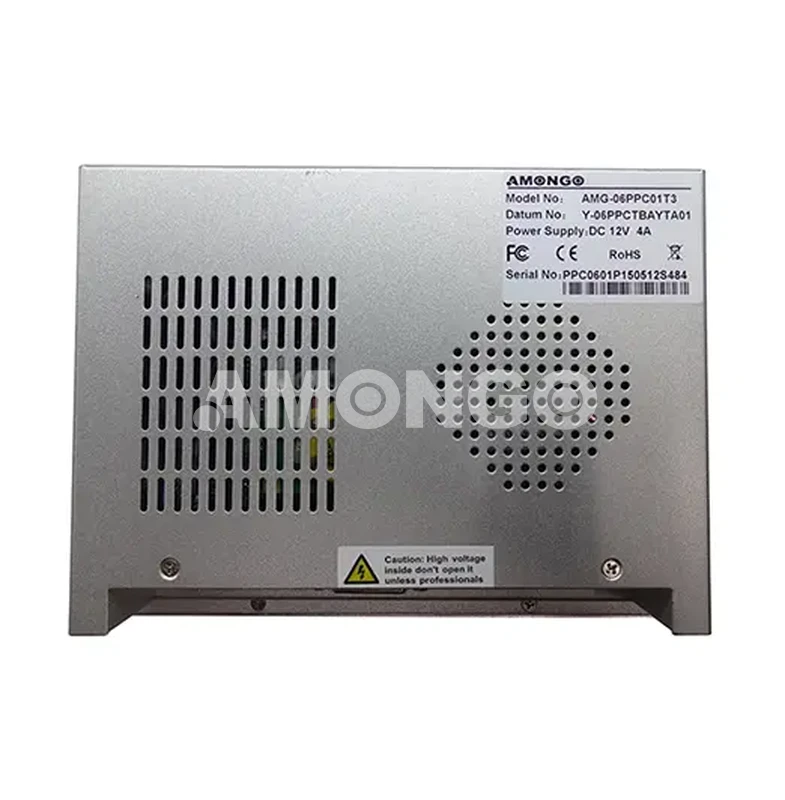

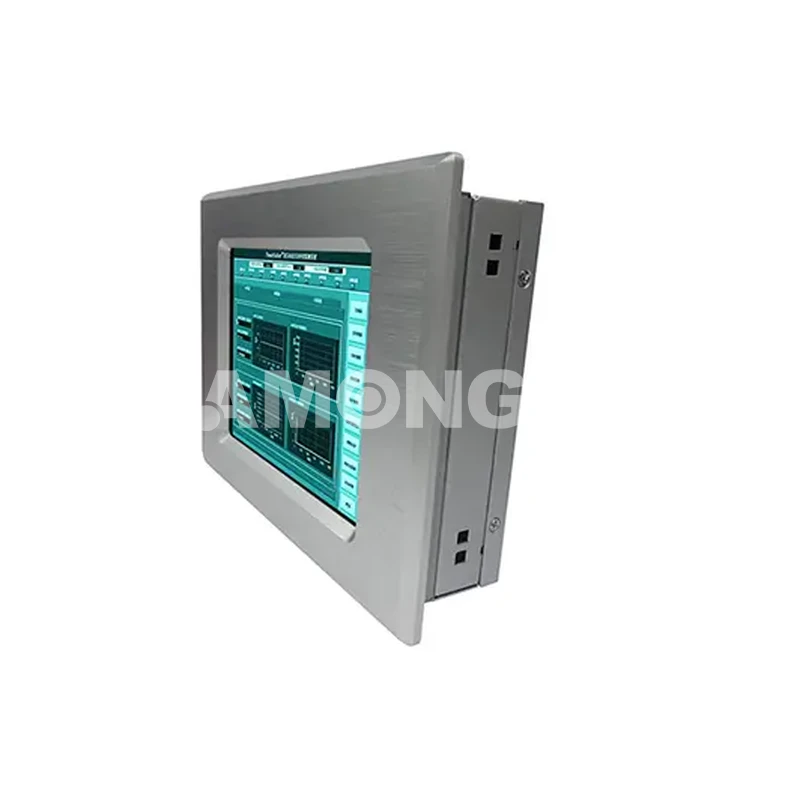

6.5 Inch Panel Mount Industrial Panel PC

The 6.5 inch IPC AMG-06PPC01T3 from Amongo is a good option for industrial application with below benefits:

Branded LCD panels with perfect image quality and wide viewing angles
High performance Intel processor, fast access hard drives, long-life power supplies;
Various touchscreen technologies, like PCAP, Resistive, IR etc.;
Rugged structure design with front IP65 aluminum bezel for waterproof;
Easy installation for panel mount or embedded mount;
Suitable used as operator panel for machine control;
Designed to endure extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.

Features of 6.5 Inch Panel Mount Industrial Panel PC

Branded LCD panels with perfect image quality and wide viewing angles
High performance Intel processor, fast access hard drives, long-life power supplies;
Various touchscreen technologies, like PCAP, Resistive, IR etc.;
Rugged structure design with front IP65 aluminum bezel for waterproof;
Easy installation for panel mount or embedded mount;
Suitable used as operator panel for machine control;
Designed to endure extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.

Model Name	AMG-06PPC01T3
CPU	Intel ® Bay Trail-M N2930 SOC Processor 1.83G
Memory	DDR3L 1333MHz 4GB
HDD	M-sata 32G
DVI port	1xDVI port
COM ports	4xCOM (optional)
USB ports	3xUSB2.0 (1xUSB 3.0)
Ethernet ports	2xRTL8111G PCI-E Gigabit LAN
Audio	1xLine-out port
Display Size	6.5"
Active Display Area(mm)	132.48(H)x99.36(V)
Max Resolution	640x480
Support Color	16.2M/262K colors
Luminance(CD/M2)	600
Contrast Ratio	600:1
Pixel Pitch (mm)	0.207(H)x0.207(V)
Display Mode	Normally White
Viewing Angle	160(H);140(V)
Backlight	LED
Type	Resistive Touchscreen
Use connector	4pin USB2.0
Input Voltage	DC 9-24V IN
Output Rating	20W(max)
Dimension(VxHxT)	208x158x53
Operating Temperature	-30～80℃
Storage Temperature	-30～80℃
Relative Humidity	5[%RH]～90[%RH]
