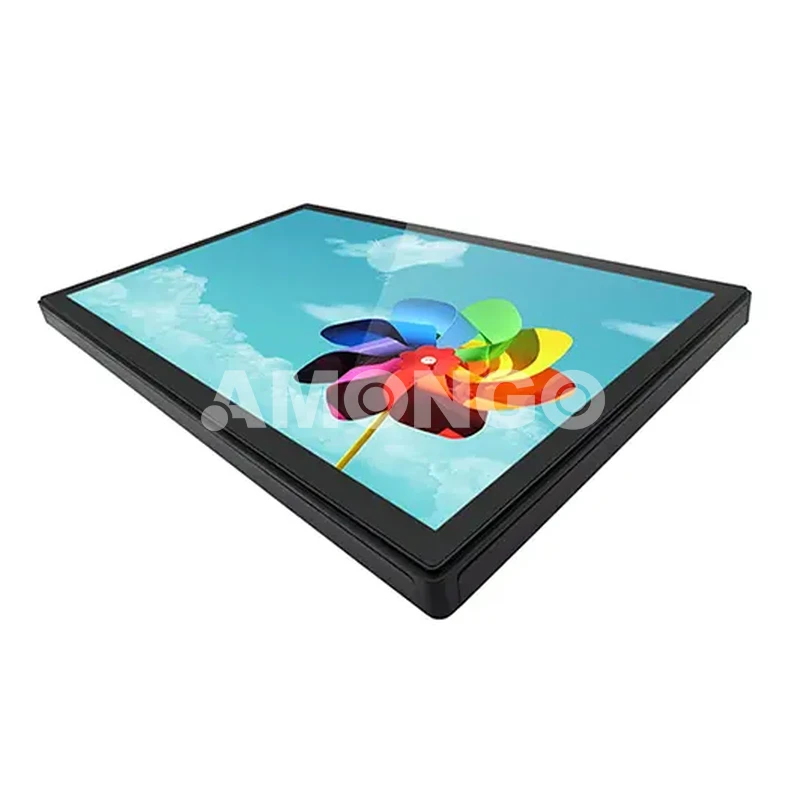

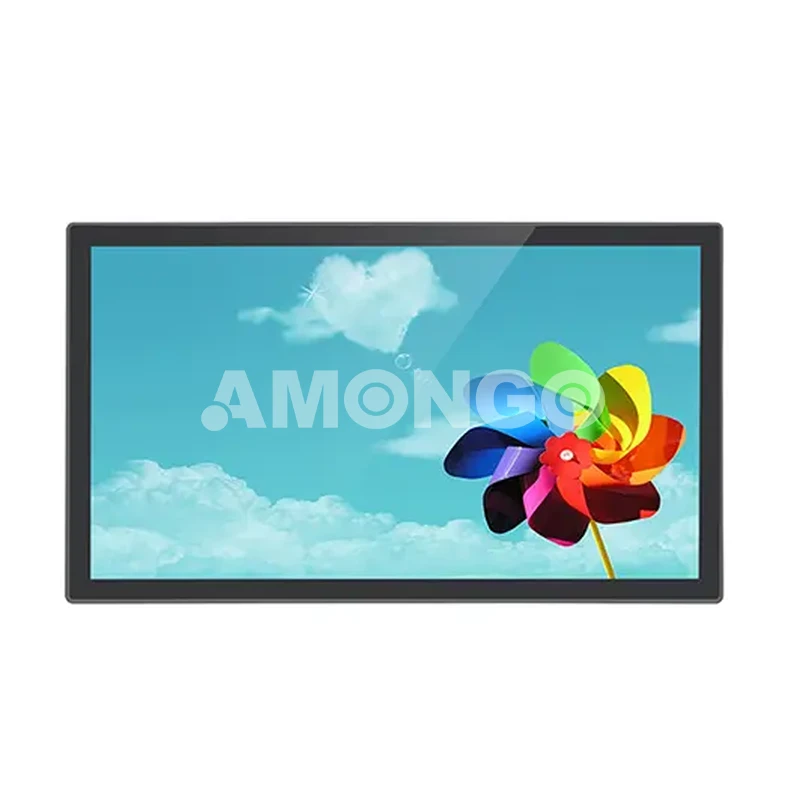

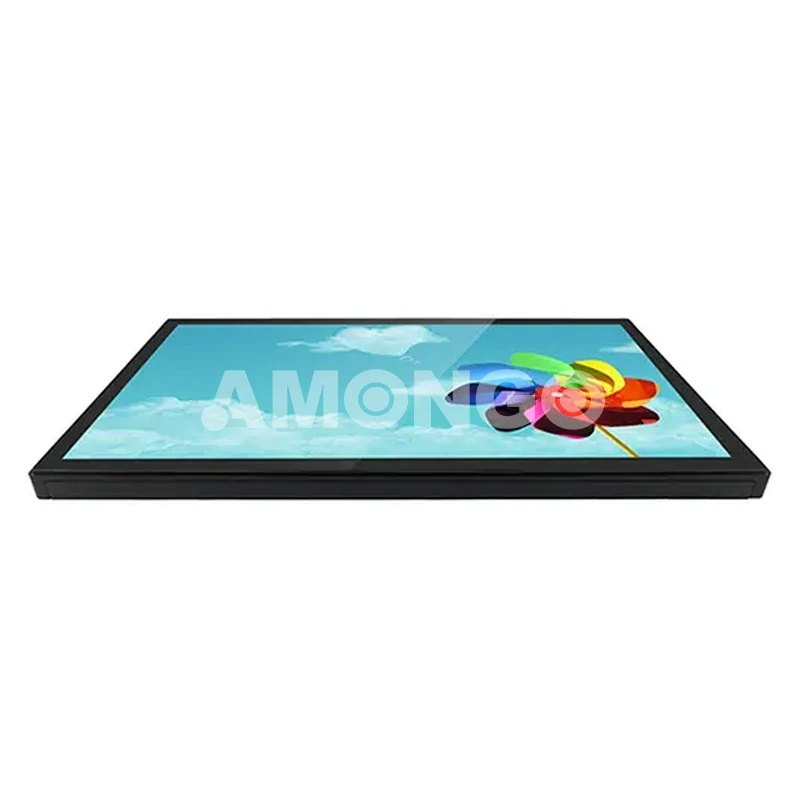

21.5 inch LCD Touch Screen Monitor

The newly designed 21.5 inch touch screen monitor AMG-21OPGX01T1 for our client for the AFC application is highly praised by them because of the following excellent performances :

Top LCD panel with a perfect image quality and high contrast ratio, industrial components to support 24/7/365 continuously operation;
Solid mechanical design to make sure normal work even under harsh environments
IP65 waterproof side frame integrated with capacitive touch screen, easy installation and maintenance, dust proof, vandal proof;
Popular multi points projective capacitive touch screen technology;
Options for high brightness and different video input interface;
Customized solution available to meet all kind information terminals

Products

Specifications of 21.5 inch LCD Touch Screen Monitor

Model Name	AMG-21OPGX01T1
Screen Size	21.5”
Active Display Area(mm)	476.064(H)x267.786(V)
Pixel Pitch(mm)	0.24795(H)x0.24795(V)
Display Resolution (pixel)	1920x1080
Contrast Ratio	3000:1
Display Mode	Normally black
Touch screen(optional)	PCAP Touch(10 points)
Brightness (cd/㎡)	250nits
Backlight	LED
Viewing Angles (CR=10)	178(H)x178(V)
Response Time(Typ.Tr+Tf)	18ms
Dimension(VxHxT)	518.2x309.7x44.5
Signal Connector	VGA/DVI-D/HDMI/Audio
Touch Interface	USB
Input Voltage	DC12V
Operating Systems Support	Windows 7/8/10 / Linux(optional)
Operating Temperature	0～50℃(non-condensation)
Storage Temperature	-20～60℃(non-condensation)
Relative Humidity	5(%RH)～90(%RH)
