Full view LCD screen

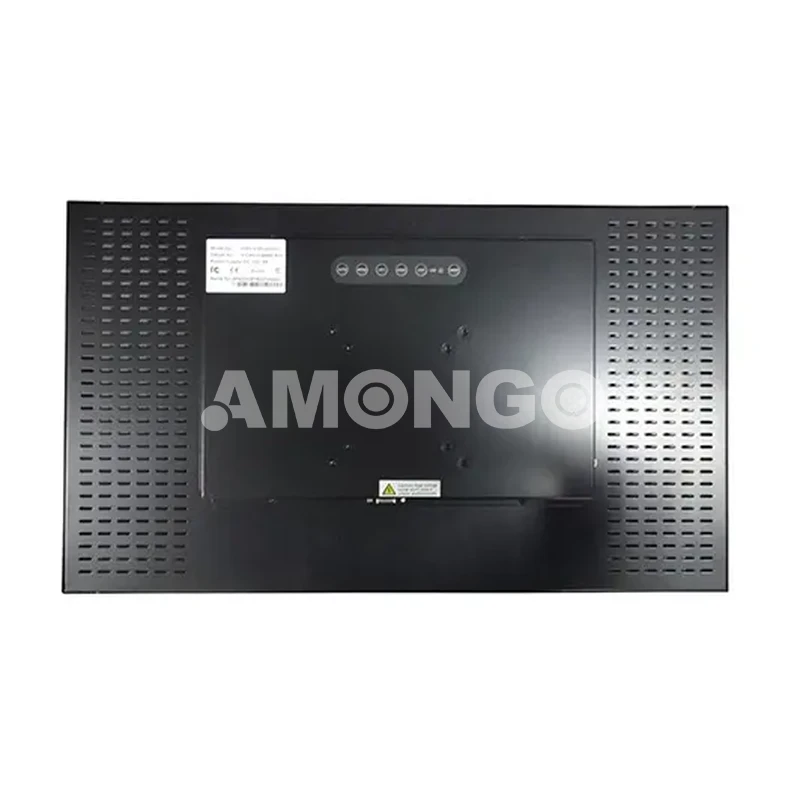

Support embedded installation, VESA installation
Low power consumption, low heat, long service life

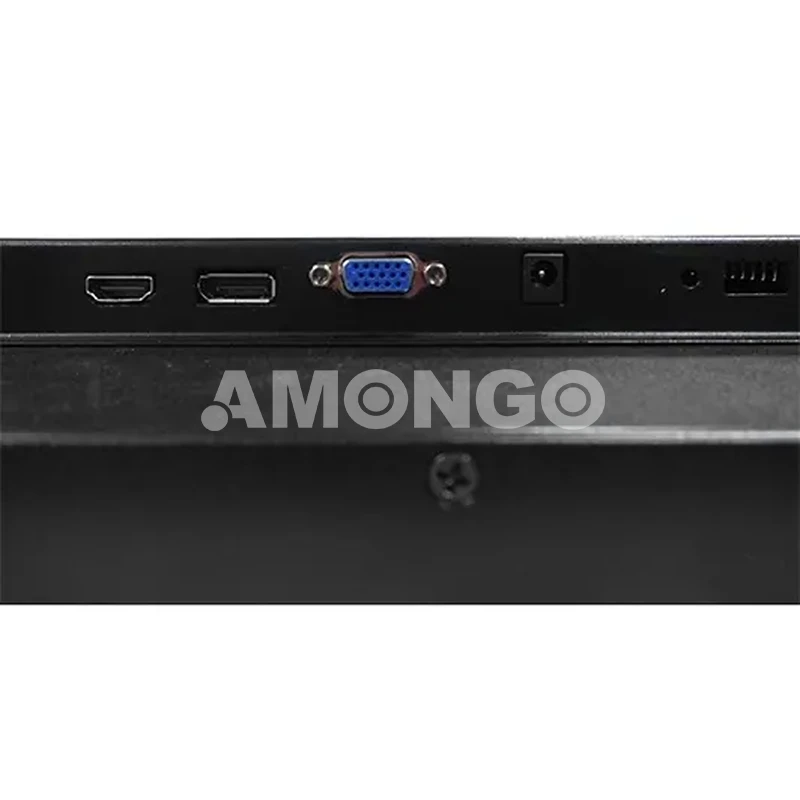

VGA/DVI/HDMI/DP/USB port
Application:
AFC/ Industrial equipment / Kiosk
| Technical Specification | |
| LCD | |
| Model Name | AMG-23IPUS01N1 |
| Screen Size | 23" |
| Active Display Area(mm) | 510.2(H)x287.4(V) |
| Pixel Pitch(mm) | 0.265(H)x0.265(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1920x1080 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 250nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 178(H);178(V) |
| Response Time（Typ.Tr+Tf） | 14ms |
| Optional | |
| Touch Screen | PCAP Touch(10 points) |
| Light Sensor | Optional |
| Tempered glass | Optional |
| I/O Interface | |
| Signal Connector | VGA/DVI/HDMI/DP/USB |
| Power Input | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 535.6*315*42 |
| Environmental | |
| Operating Temperature | 0~50℃（non-condensation） |
| Storage Temperature | -20~60°C（non-condesation） |
| Relative Humidity | 5~90(% RH) |
